Electric fluorine lined ball valve

  • [Valve model]: Q941F46
  • [Diameter specification]: DN15-DN300
  • [Structure]: Floating straight through
  • [Valve body material]: Cast steel WCB, stainless steel 304, stainless steel 316
  • [Nominal pressure]: PN10、PN16
  • [Applicable temperature]: -29～+180℃
  • [Application Scope]: Corrosive medium and strong acid and alkali fluid
Consult the manufacturer Online Message
  • Electric fluorine lined ball valve

Product features

The electric fluorine lined ball valve (corrosion resistant electric ball valve) is made of a combination of fluorine lined ball valve and an electric actuator with a full fluorine plastic lining process. It has extremely high chemical stability and is suitable for any highly corrosive chemical medium. Since the cavity and ball of Q941F46 electric ball valve adopt high-pressure injection molding process and are lined with corrosion resistant and aging resistant polytetrafluoroethylene propylene (F46 for short), it has reliable corrosion resistance and sealing performance and can be used for switching or regulating in various acid, alkali, salt and other strong corrosive media.

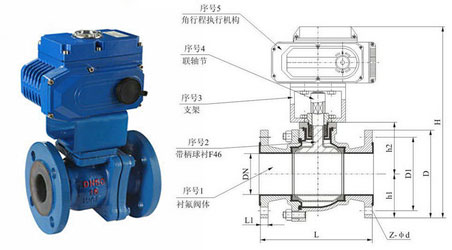

Structure Diagram of Electric Fluorine Lined Ball Valve

technical parameter

Nominal diameter DN15～DN300(mm)
Nominal pressure PN1.0、1.6MPa
Connection type flange
Sealing form O-shaped ball valve element
supply voltage AC110V, AC220V, AC380V (DC24, etc.)
Applicable media Any corrosive chemical medium
Valve body type Two section valve body (floating ball)
body material Carbon steel, stainless steel 304, 316 、316L
Sealing material teflon
Leakage Q Soft seal: zero leakage
Applicable temperature PTFE:-29～+180℃
Drive type Electric control, optional explosion-proof actuator, with manual device
control mode Common switch type (switch two position mode), intelligent regulation (4~20mA analog signal control)

Advantages of electric fluorine lined ball valve:

1. Corrosion resistance: the inner cavity and body of the valve body are lined with 2.5-3mm thick F46, which is resistant to acid, alkali and strong corrosion.
2. Soft sealing valve seat is adopted, with good sealing performance.
3. Small size, light weight, simple structure, convenient installation and maintenance.
4. Small flow resistance, strong flow capacity and good flow characteristics.


Quotation process

Valve price:

Due to the different requirements of order quantity, packaging and delivery method, and the fluctuation of the price of valve raw materials, the price of valves will have a big difference immediately, so our products have not been marked with prices on the website, please understand.

If you select a valve product on this website and need to know the price or obtain relevant technical information, please contact us. We will reply immediately, and can select appropriate valve products for you according to your requirements, so that your procurement process is easy and pleasant.

Quotation process:

1. Please fax the name (or product model) of the valve you selected, the required order quantity, packaging requirements, delivery time, your company name, your company location and contact information to 021-36311208 Or telephone: 021-60547555。

2. After receiving the customer's purchase list, our company will provide the customer with various services such as valve quotation "price list", model selection "valve model" and technical guidance as soon as possible.

3. Specific matters: delivery date, special requirements, etc.

Ordering Instructions

1、 If the customer has special requirements for the product, the following instructions must be provided in the order contract:
(1) Valve body material (such as plastic, cast steel, stainless steel...)
(2) Connection type (such as flange, thread, clamp, etc.)
(3) Nominal diameter, pipe size
(4) Ambient temperature and pressure range
(5) Power supply voltage, air supply pressure
(6) Fluid properties (including nominal pressure, temperature, viscosity or acid-base)
2、 The company configures various driving devices according to the special requirements of customers. (electric control, pneumatic control)
3、 If the customer provides the determined valve type and model, the customer should correctly explain the meaning and requirements of the model (see the description of valve model preparation for details), and sign the contract on the condition that both the supplier and the buyer have the same understanding.
4、 After the customer tells the required valve model, specification, quantity, delivery time and place, the deposit of 20% of the total amount or the full payment for goods shall be remitted to our company's account in time, and the rest of the payment for goods shall be remitted before shipment, so as to arrange shipment in time.
5、 After the purchase is confirmed, our company will produce in strict accordance with the delivery date. The product processing cycle is generally 3 to 30 days, depending on the type and quantity of the order, and the specific delivery time is subject to the contract. In order to ensure that the goods you ordered are in place in time, please try your best to order earlier.
6、 Our company provides network distribution services according to the needs of customers, delivering goods to the branches (offices) of customers in major cities, and implementing door-to-door delivery services. After the products are accepted, our company will provide after-sales service.
