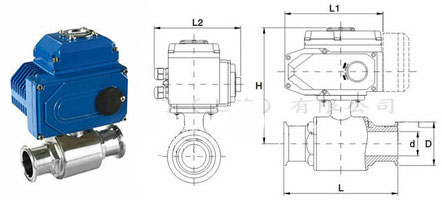

Electric sanitary ball valve

  • [Valve model]: Q981F
  • [Diameter specification]: DN15～DN100
  • [Structure]: One piece
  • [Valve body material]: Stainless steel 304, 316, 316L
  • [Nominal pressure]: PN10
  • [Applicable temperature]: ≤180℃
  • [Application Scope]: Alcohol, food, bioengineering, pharmacy, beverage, dairy, etc
Consult the manufacturer Online Message
  • Electric sanitary ball valve

Product features

Electric sanitary ball valve is composed of sanitary ball valve and electric actuator. It is generally connected by clamp with quick fitting connector. Gu is also called electric quick fitting ball valve. The electric sanitary ball valve meets the food sanitary standard. The valve components are made of stainless steel. The inner wall of the flow channel has undergone precision polishing and sterilization treatment, as well as strict inspection procedures. It can be used for on-off or flow control in food, beverage, pharmaceutical and other pipeline systems. The quick installation connection mode at both ends of the electric sanitary ball valve is particularly easy to disassemble, clean and maintain, and the sealing ring is fully enclosed, without any dead angle and easy to clean, which can ensure the pipeline sanitation and keep the fluid unblocked.


Advantages of electric sanitary ball valve:

1. Precision machining and forging, smooth surface without dead corner, seamless, automatic emptying, corrosion resistance and high temperature resistance;
2. The electric quick installation ball valve has beautiful appearance and strong texture performance, and its processing has been precision polished and sterilized;
3. The valve body is made of stainless steel SUS304, 316L and higher materials to ensure hygienic standards.
4. The electric quick installation ball valve is easy to connect, and the two ends are connected by clamps, which is easy to disassemble, clean, repair and replace.

technical parameter

Nominal diameter DN15～DN100(mm)
Nominal pressure PN1.0MPa
structural style One piece
Seat Tightness Polytetrafluoroethylene (PTFE) ≤ 180 ℃
Link Mode Clamp quick installation type, welding type, threaded type
body material Stainless steel 304, 316, 316L
Ball core material Stainless steel 304, 316, 316L
Applicable media Alcohol, food, bioengineering, pharmacy, beverage, dairy, etc
control mode Cut off type (switch control) Intelligent regulation type (4-20mA signal)

Application of electric sanitary ball valve:
The electric sanitary ball valve has good corrosion resistance, heat resistance and other characteristics. It is completely in accordance with the manufacturing standards of high specifications, and can not be replaced by industrial valves. The surface of the ball valve is smooth to ensure cleanness, no media storage area, and no potential pollution. It is especially suitable for processing in food, medicine, beer, beverage and other industries, And places with high requirements on hygiene level.

Quotation process

Valve price:

Due to the different requirements of order quantity, packaging and delivery method, and the fluctuation of the price of valve raw materials, the price of valves will have a big difference immediately, so our products have not been marked with prices on the website, please understand.

If you select a valve product on this website and need to know the price or obtain relevant technical information, please contact us. We will reply immediately, and can select appropriate valve products for you according to your requirements, so that your procurement process is easy and pleasant.

Quotation process:

1. Please fax the name (or product model) of the valve you selected, the required order quantity, packaging requirements, delivery time, your company name, your company location and contact information to 021-36311208 Or telephone: 021-60547555。

2. After receiving the customer's purchase list, our company will provide the customer with various services such as valve quotation "price list", model selection "valve model" and technical guidance as soon as possible.

3. Specific matters: delivery date, special requirements, etc.

Ordering Instructions

1、 If the customer has special requirements for the product, the following instructions must be provided in the order contract:
(1) Valve body material (such as plastic, cast steel, stainless steel...)
(2) Connection type (such as flange, thread, clamp, etc.)
(3) Nominal diameter, pipe size
(4) Ambient temperature and pressure range
(5) Power supply voltage, air supply pressure
(6) Fluid properties (including nominal pressure, temperature, viscosity or acid-base)
2、 The company configures various driving devices according to the special requirements of customers. (electric control, pneumatic control)
3、 If the customer provides the determined valve type and model, the customer should correctly explain the meaning and requirements of the model (see the description of valve model preparation for details), and sign the contract on the condition that both the supplier and the buyer have the same understanding.
4、 After the customer tells the required valve model, specification, quantity, delivery time and place, the deposit of 20% of the total amount or the full payment for goods shall be remitted to our company's account in time, and the rest of the payment for goods shall be remitted before shipment, so as to arrange shipment in time.
5、 After the purchase is confirmed, our company will produce in strict accordance with the delivery date. The product processing cycle is generally 3 to 30 days, depending on the type and quantity of the order, and the specific delivery time is subject to the contract. In order to ensure that the goods you ordered are in place in time, please try your best to order earlier.
6、 Our company provides network distribution services according to the needs of customers, delivering goods to the branches (offices) of customers in major cities, and implementing door-to-door delivery services. After the products are accepted, our company will provide after-sales service.
