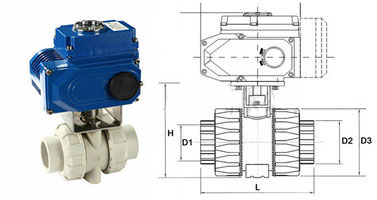

Electric PP ball valve

  • [Valve model]: Q911S
  • [Diameter specification]: DN15～DN100
  • [Structure]: Floating straight through type
  • [Valve body material]: UPVC、CPVC、PP、PVDF
  • [Nominal pressure]: PN10
  • [Applicable temperature]: -10℃-85℃
  • [Application Scope]: Pure water and raw drinking water pipeline, acid-base and chemical solution system
Consult the manufacturer Online Message
  • Electric PP ball valve

Product features

The electric PP ball valve is a kind of plastic ball valve made of polypropylene PP material. Its appearance is light milky white. It is connected with the pipeline in a way of double free union. It can be quickly assembled without other tools. The electric PP ball valve has extremely strong corrosion resistance and sealing performance. It has fewer leakage points and high strength. It can be used in various liquid, gas, water and other fluid pipelines containing corrosive media and acid-base. The electric PP ball valve is not suitable for use in occasions with high temperature or in liquids containing hard particles. It is easy to scratch the surface of the ball, thus affecting the sealing and causing leakage.

Features of electric PP ball valve:

1. The absolute value of mechanical properties of electric PP ball valve is higher than that of UPVC material, which is more suitable for corrosive media such as acid-base, chemical raw materials, etc.
2. The electric union ball valve is connected by a double guide, which is easy to install and remove. Only the guide can be removed to repair and maintain the pipeline works.
3. The valve body material of electric PP ball valve is non-toxic, odorless and tasteless milky white high crystalline polymer, which is one of the lightest varieties of all plastics at present.
4. Good chemical stability, good corrosion resistance to non oxidizing acid dilute nitric acid, alkali and salt solutions.

technical parameter

Nominal diameter DN15～DN100(mm)
Pressure range 1.0mpa-1.6mpa
Connection mode Double free union 、 flange
working temperature -10℃-85℃
body material UPVC 、CPVC、PP、PVDF
sealing material
PTFE
Installation position No requirement (horizontal installation is recommended to prolong service life)
Applicable media water , Gas , acid-base 、 Food chemical dissolving 、 Corrosive chemical liquid
control mode Switch mode (two position cut-off control) Adjustment mode (4-20mA signal proportional precise adjustment)

Electric PP ball valve actuator options:
1. Power supply voltage: DC24V, DC220V, AC110V, AC220V, AC380V (optional)
2. Operating parameters: medium type, temperature, pressure
3. Control type: switch type, passive contact type, valve position signal feedback type, intelligent regulation type (input/output 4-20mA)
4. Other configurations: explosion-proof electric actuator with manual device (valve can be opened and closed manually without power supply)

Quotation process

Valve price:

Due to the different requirements of order quantity, packaging and delivery method, and the fluctuation of the price of valve raw materials, the price of valves will have a big difference immediately, so our products have not been marked with prices on the website, please understand.

If you select a valve product on this website and need to know the price or obtain relevant technical information, please contact us. We will reply immediately, and can select appropriate valve products for you according to your requirements, so that your procurement process is easy and pleasant.

Quotation process:

1. Please fax the name (or product model) of the valve you selected, the required order quantity, packaging requirements, delivery time, your company name, your company location and contact information to 021-36311208 Or telephone: 021-60547555。

2. After receiving the customer's purchase list, our company will provide the customer with various services such as valve quotation "price list", model selection "valve model" and technical guidance as soon as possible.

3. Specific matters: delivery date, special requirements, etc.

Ordering Instructions

1、 If the customer has special requirements for the product, the following instructions must be provided in the order contract:
(1) Valve body material (such as plastic, cast steel, stainless steel...)
(2) Connection type (such as flange, thread, clamp, etc.)
(3) Nominal diameter, pipe size
(4) Ambient temperature and pressure range
(5) Power supply voltage, air supply pressure
(6) Fluid properties (including nominal pressure, temperature, viscosity or acid-base)
2、 The company configures various driving devices according to the special requirements of customers. (electric control, pneumatic control)
3、 If the customer provides the determined valve type and model, the customer should correctly explain the meaning and requirements of the model (see the description of valve model preparation for details), and sign the contract on the condition that both the supplier and the buyer have the same understanding.
4、 After the customer tells the required valve model, specification, quantity, delivery time and place, the deposit of 20% of the total amount or the full payment for goods shall be remitted to our company's account in time, and the rest of the payment for goods shall be remitted before shipment, so as to arrange shipment in time.
5、 After the purchase is confirmed, our company will produce in strict accordance with the delivery date. The product processing cycle is generally 3 to 30 days, depending on the type and quantity of the order, and the specific delivery time is subject to the contract. In order to ensure that the goods you ordered are in place in time, please try your best to order earlier.
6、 Our company provides network distribution services according to the needs of customers, delivering goods to the branches (offices) of customers in major cities, and implementing door-to-door delivery services. After the products are accepted, our company will provide after-sales service.
