Electric flange gate valve

  • [Valve model]: Z941H，Z941W
  • [Diameter specification]: DN50-DN600
  • [Structure]: Straight through
  • [Valve body material]: Cast steel WCB, stainless steel 304, stainless steel 316
  • [Nominal pressure]: PN16、PN25、PN40、PN64
  • [Applicable temperature]: -40℃～450℃
  • [Application Scope]: Industry, water, steam, oil products, sewage
Consult the manufacturer Online Message
  • Electric flange gate valve

Product features

Electric flange gate valve (Z941H) is composed of stainless steel flange gate valve and electric actuator, which is stable and reliable when used in the pipeline, so flange gate valve is often used in high-pressure pipeline. The electric flange gate valve is a kind of remote automatic control gate valve. The valve stem drives the valve stem to move up and down through the power supply to control the opening and closing of the gate valve. It is applicable to the system pipeline under various working conditions with nominal pressure of PN1.6~16.0MPa and working temperature of ≤ - 29 ℃~550 ℃. It is mainly used for cutting off or connecting. It is generally not recommended to regulate the medium flow.

Advantages of electric flange gate valve:

1. The fluid resistance is small, the medium channel inside the valve body is straight through, and the medium does not change its flow direction when flowing through the gate valve.
2. The erosion and erosion of sealing surface medium is small.
3. Simple shape, good manufacturing process and wide application range.
4. The opening and closing is more successful, and the movement direction of the ram is perpendicular to the flow direction of the medium.
5. The flow direction of the medium is generally unrestricted, and the medium can flow through both sides of the gate valve in any direction.
Design standard of electric flange gate valve:

Design and manufacture: GB/T12234-89
Structure length: GB/T12221-89
Flange connection size: JB/T79-94
Valve inspection and test: GB/T13927-9
Performance specification of electric flange gate valve:

Test pressure (MPa): 1.6 2.5 4.0 6.4
Strength test (MPa): 2.4 3.75 6.0 9.6
Sealing test (MPa): 1.76 2.75 4.4 7.04
Low pressure sealing test (MPa): 0.6MPa

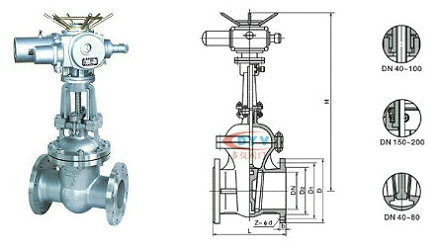

 Structure diagram of electric flange gate valve
Structure diagram of electric flange gate valve

technical parameter

Nominal diameter DN50-DN600mm
Valve body type Straight through casting
Nominal pressure National standard PN1.6, 2.5, 4.0, 6.4 MPa
Connection type Flange connection
control mode Electric control (power driven)
body material WCB、CF8、CF3、CF8M、CF3M
ambient temperature -20 ～+60 ℃, ambient humidity: ≤ 90%

Quotation process

Valve price:

Due to the different requirements of order quantity, packaging and delivery method, and the fluctuation of the price of valve raw materials, the price of valves will have a big difference immediately, so our products have not been marked with prices on the website, please understand.

If you select a valve product on this website and need to know the price or obtain relevant technical information, please contact us. We will reply immediately, and can select appropriate valve products for you according to your requirements, so that your procurement process is easy and pleasant.

Quotation process:

1. Please fax the name (or product model) of the valve you selected, the required order quantity, packaging requirements, delivery time, your company name, your company location and contact information to 021-36311208 Or telephone: 021-60547555。

2. After receiving the customer's purchase list, our company will provide the customer with various services such as valve quotation "price list", model selection "valve model" and technical guidance as soon as possible.

3. Specific matters: delivery date, special requirements, etc.

Ordering Instructions

1、 If the customer has special requirements for the product, the following instructions must be provided in the order contract:
(1) Valve body material (such as plastic, cast steel, stainless steel...)
(2) Connection type (such as flange, thread, clamp, etc.)
(3) Nominal diameter, pipe size
(4) Ambient temperature and pressure range
(5) Power supply voltage, air supply pressure
(6) Fluid properties (including nominal pressure, temperature, viscosity or acid-base)
2、 The company configures various driving devices according to the special requirements of customers. (electric control, pneumatic control)
3、 If the customer provides the determined valve type and model, the customer should correctly explain the meaning and requirements of the model (see the description of valve model preparation for details), and sign the contract on the condition that both the supplier and the buyer have the same understanding.
4、 After the customer tells the required valve model, specification, quantity, delivery time and place, the deposit of 20% of the total amount or the full payment for goods shall be remitted to our company's account in time, and the rest of the payment for goods shall be remitted before shipment, so as to arrange shipment in time.
5、 After the purchase is confirmed, our company will produce in strict accordance with the delivery date. The product processing cycle is generally 3 to 30 days, depending on the type and quantity of the order, and the specific delivery time is subject to the contract. In order to ensure that the goods you ordered are in place in time, please try your best to order earlier.
6、 Our company provides network distribution services according to the needs of customers, delivering goods to the branches (offices) of customers in major cities, and implementing door-to-door delivery services. After the products are accepted, our company will provide after-sales service.
